Install PS5 Scuf V2 paddles – no soldering

Do you want to equip your PS5 controller with additional paddles and smart triggers without having to solder? Then you've come to the right place! In this detailed guide, we'll show you how to easily install the PS5 paddle – using our high-quality conversion parts. Whether you want to install smart triggers, remappers, or paddles, we'll guide you step-by-step through the process. This video and guide refer to the Scull V2 paddle; the new Scull V3 paddle is installed in the same way, but it is already perfectly pre-bent and made from injection molding. This makes it more durable, more stable, and gives it a higher-quality look.

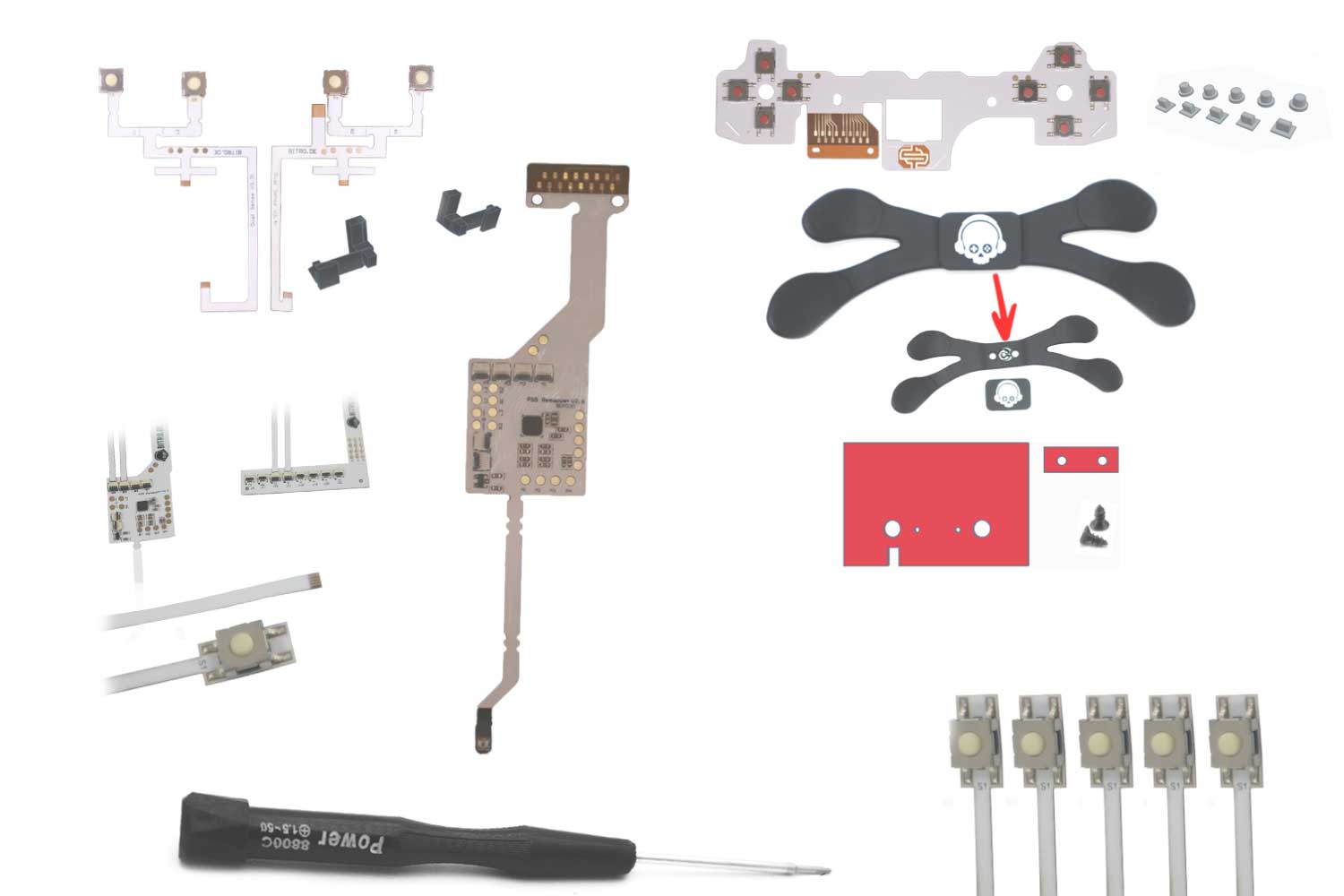

With the conversion parts from this PS5 Remapper & Paddle Set, you can customize your controller. We also link to further products that are perfect for the conversion, such as the PS5 Custom Controller Configurator or the PS5 Housing Configurator.

Step 1: Open and prepare the controller

Before you start installing the paddles and smart triggers, you need to open your PS5 controller.

1. Unscrew the back of your controller. You will find the screws on the back, which you can loosen with a small Phillips screwdriver.
2. Carefully remove the battery cover.
3. Unplug the flex cables that connect the triggers to the circuit board.

If you only want to install the smart triggers (L2/R2, L1/R1), you can simply leave out the flex cables for the triggers and do not need to plug them back in. This will save you some time.

Step 2: Insert the PS5 Remapper

The remapper is the core component if you want to program the button assignments of your paddles. This allows you to individually assign your paddles and adapt them to your game.

1. Peel off the protective film from the adhesive surface on the remapper.
2. Place the remapper on the contact surface in the controller, making sure that the holes align exactly.
3. Carefully turn the back of the controller over again and place it on.
4. Plug the flex cable back into the designated port.
5. Put the battery cover back on and stick it over the battery so that everything is securely in place.

This step ensures that your controller will later process the paddle signals correctly.

Step 3: Prepare and install smart triggers

For the installation of the smart triggers (L1, L2, R1, R2), there are a few important details to consider:

1. Remove the rubber pieces located on the triggers with pliers or tweezers.
2. Take the flex cable for the smart triggers and carefully bend the L1/R1 cable so that it fits better later.
3. Peel off the adhesive strips from the flex cables for L1, L2 and R1, R2.
4. Insert the flex cables from above into the designated connector.
5. You can carefully align and position the cables with a screwdriver.
6. Insert the smart trigger insert behind the triggers.
7. Carefully slide the button back over the insert and press the tubes into position with your thumb and screwdriver.
8. If the button is crooked, you can gently pull it forward with your thumb until everything fits.
9. Repeat this process on the other side.

Step 4: Adapt the button area (mill out)

For the new smart trigger buttons to function perfectly, the area below the L1 R1 buttons must be slightly adjusted:

• Carefully mill out the area that lies under the button. This allows the button to click past the switch and activate without problems.
• This adjustment is necessary for the smart triggers to fully function and provide crisp feedback.

Don't worry, milling it out is straightforward and ensures smooth operation.

Step 5: Position paddles and drill holes

Now it's time for the paddles, which you want to mount on the back of the controller. We use a template that shows you exactly where the holes need to be.

1. Place the supplied template on the back of your controller.
2. For the paddle, the two outer holes of the template are relevant.
3. The upper holes are for the grip housing, the lower ones for the standard housing.
4. Select the appropriate holes depending on the housing and desired position.
5. For the middle hole, through which the flex cables are routed, you need a drill bit with a minimum diameter of 3.5 mm. We recommend 4.5 mm for more clearance. For the paddle screws, you need a 1.5mm drill bit.
6. Carefully position the drill and drill the hole.

This provides the perfect basis for securely and cleanly attaching the paddles.

Step 6: Feed flex cable through the hole and bend paddle

The flex cable of the paddles must be threaded through the drilled hole and then bent to fit:

1. Hold the two flex cables of the paddle together, with the cable ends facing outwards.
2. Carefully thread the flex cables through the drilled hole.
3. Slide the paddle back and forth until you can clearly see the screw holes.
4. To perfectly adapt the paddle to the shape of your housing, heat it with a hairdryer on high for a few seconds until it softens.
5. Bend the paddle so that the buttons will later lie exactly on the groove of the housing.
6. If you don't like the position, you can simply reheat the paddle and re-bend it – this is not a problem and can be repeated as many times as you like.

With this method, your paddle will sit perfectly and ergonomically on your controller.

Step 7: Connect flex cable and assemble housing

Once the paddle and smart triggers are prepared, connect the flex cables and reassemble the controller:

1. Plug the paddle flex cables into the corresponding connectors on the controller.
2. Hold the flex cables firmly with your thumb and gently press them onto the contacts to ensure a good fit.
3. Rotate the housing several times so that the flex cables form a nice spiral and are not pinched.
4. Reattach the housing from the outside and secure it with the screws.
5. Remount the trigger buttons in their place.

Now your PS5 controller with paddles and smart triggers is ready to use!

Conclusion: Installing PS5 paddles easily and quickly without soldering

With this conversion, you can significantly enhance your PS5 controller – and all without soldering! The combination of smart triggers, remapper, and paddles offers you more control and comfort while gaming. It's especially practical that you can customize the button assignments thanks to the remapper.

If you want to go even further, you can additionally equip your controller with an LED Kit with Analog Sticks to customize its appearance. Or you can use the PS5 Custom Controller Configurator to put together a completely bespoke controller.

A new PS5 housing can also give your controller a fresh look and provide better grip during long sessions.

With the high-quality conversion parts from bitro.de, you have everything you need to professionally and durably modify your controller. And the best part: you can do it all yourself, without a soldering iron or complicated technology.

We wish you a lot of fun with the conversion and, of course, with gaming on your new PS5 controller!
